Destroy Deployments

It is essential to destroy a deployment at the end of its life cycle so that no resources are left in place. With a proper destruction procedure, one can mitigate the accrued cost of AWS.

WARNING: Before deleting the deployments, developers will need to account for the following:¶

• When deleting the CloudFormation stack, the deletion order matters.

• Delete some of the CloudFormation stacks before deleting ECR.

• The name of the items you’re deleting may differ depending on the deployment you are taking down. For example, your deployment’s CloudFormation stack may not have a region name.

• Do NOT take down the CloudWatch logs. These are used for statistical analysis later on.

Removing CloudFormation Stacks¶

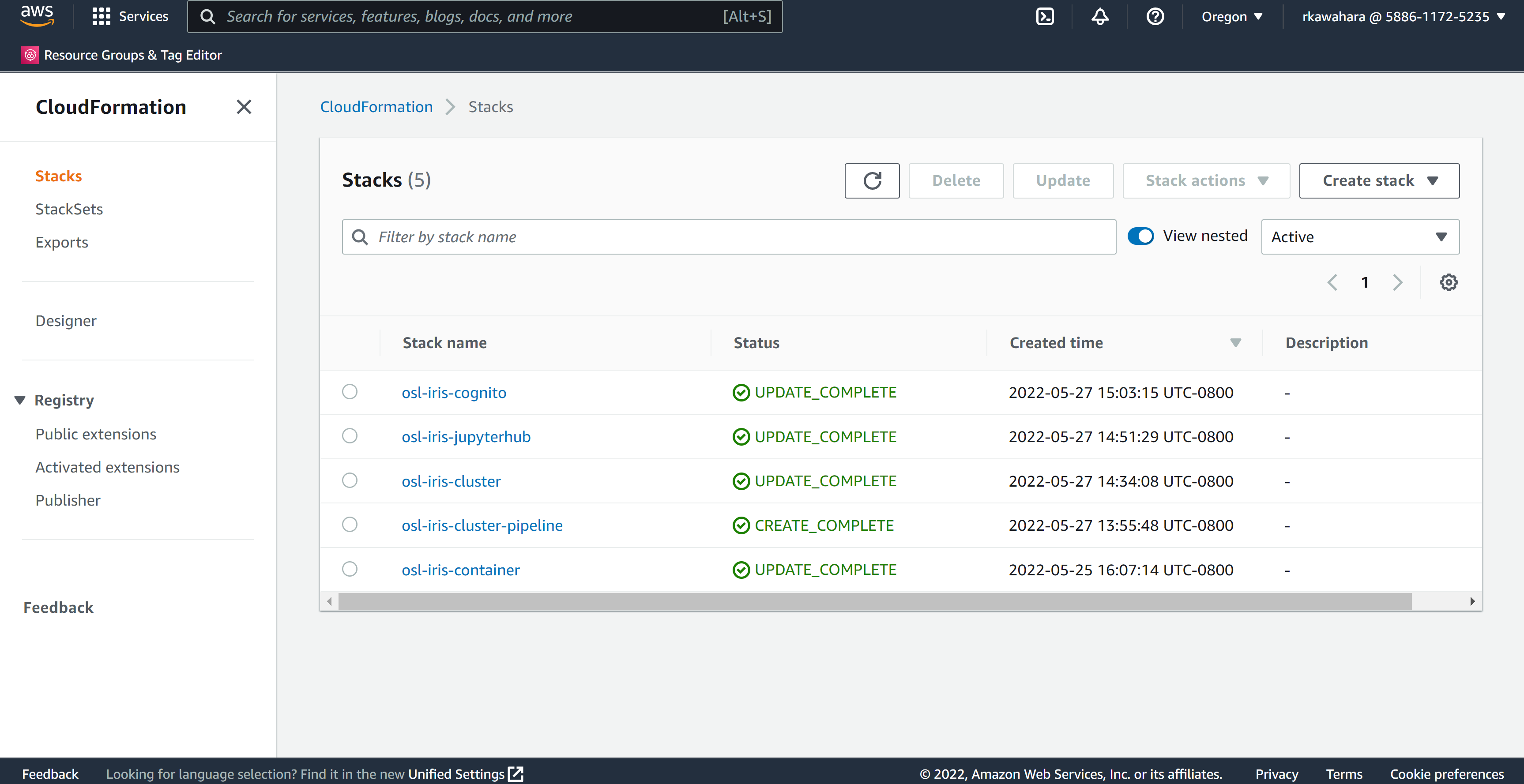

When you first go to CloudFormation, it should look something like the following:

Because the order of removing deployment is essential, you will need to take down the CloudFormation stacks first. Deleting the following CloudFormation stacks will kill the deployment and remove its resources:

• <deployment_name>-container

• <deployment_name>-cluster

• deployment_name

NB: Do not manually delete any S3 buckets after emptying them in the steps below.

If you delete the buckets after emptying them, the CloudFormation stack deletions associated with those buckets will fail. To fix the issues regarding deleted buckets, you will have to recreate the empty buckets to proceed.

Therefore, let CloudFormation delete the S3 buckets for you once you empty them.

Follow the below instructions to properly delete these stacks.

Steps to Delete CloudFormation Stacks¶

1. Prepare to delete the <deployment_name>-container CloudFormation stack¶

NB: The <deployment_name>-container is independent of other stacks, i.e., the deletion order does not matter.

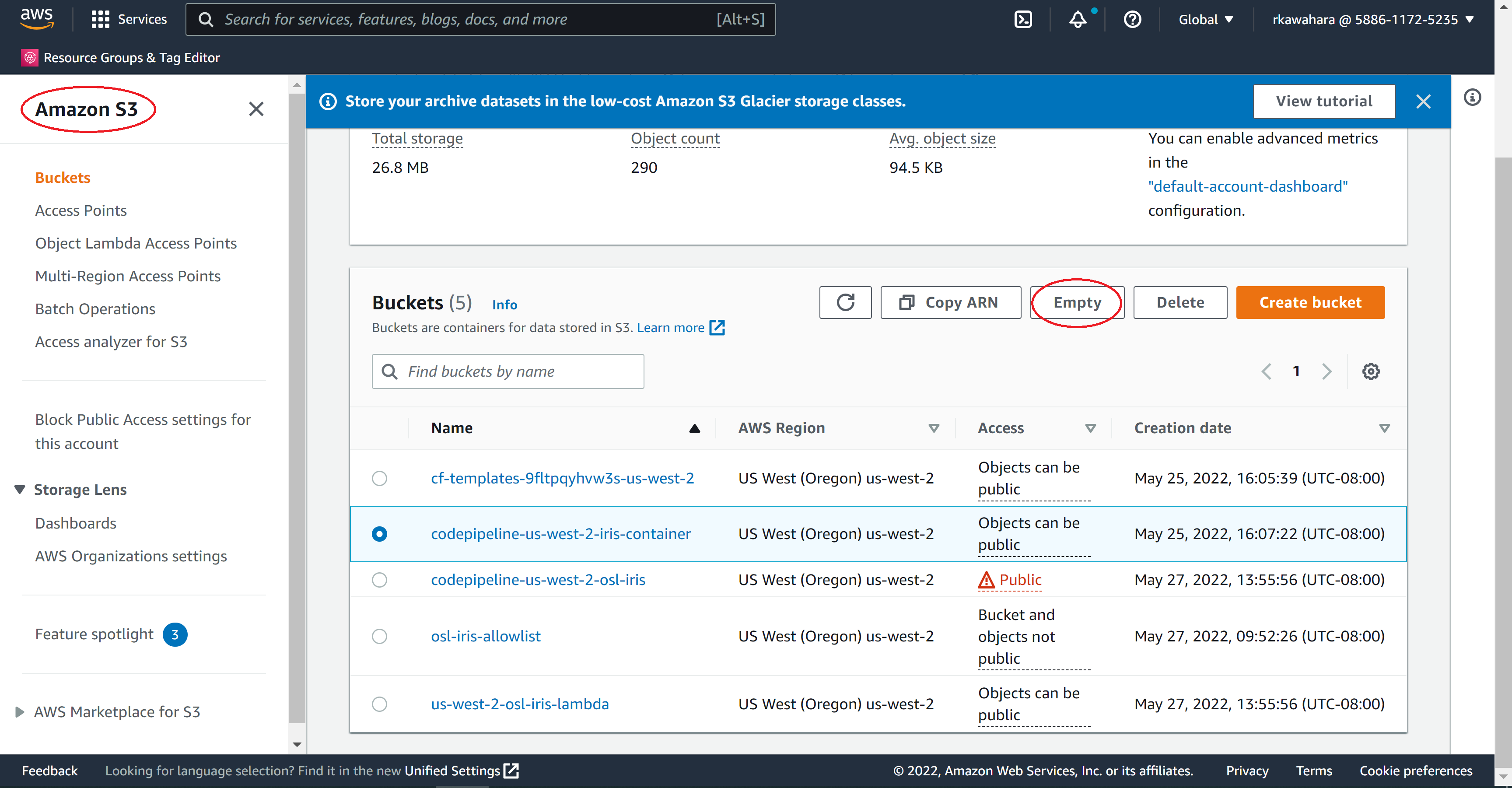

1. Empty the codepipeline-<region>-<deployment_name>-container S3 bucket

2. Navigate to the AWS S3 console

   1. Click the codepipeline-<region>-<deployment_name>-container S3 bucket option.

   2. Click the Empty button

      1. Confirm the deletion of bucket contents by typing permanently delete in the provided field

      2. Click the Empty button

2. Delete ECR repos¶

1. Navigate to the AWS Elastic Container Registry

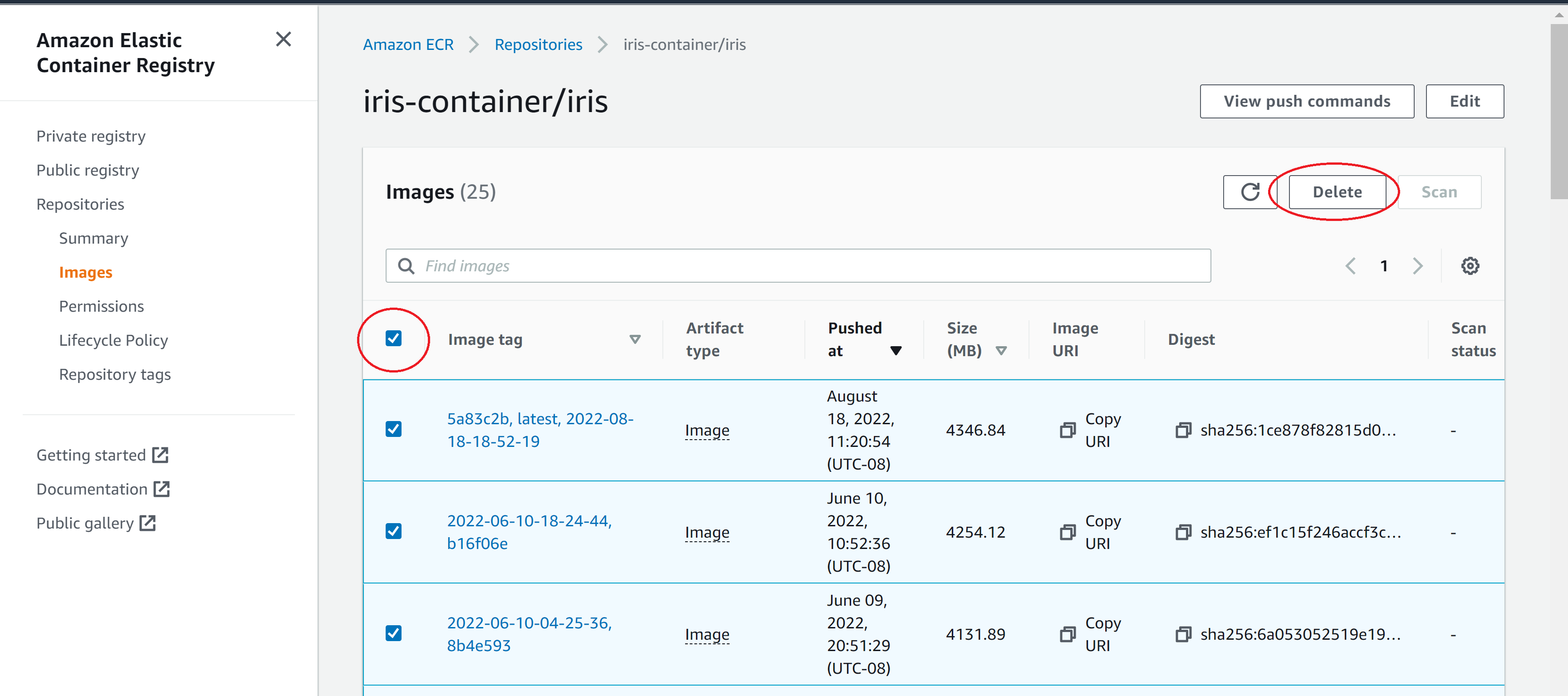

2. Before deleting the ECR, you will need to empty them first.

   1. Click the repository name first and go to the individual ECR repository.

   2. Select all items by clicking the first box.

   3. Select delete and confirm the deletion.

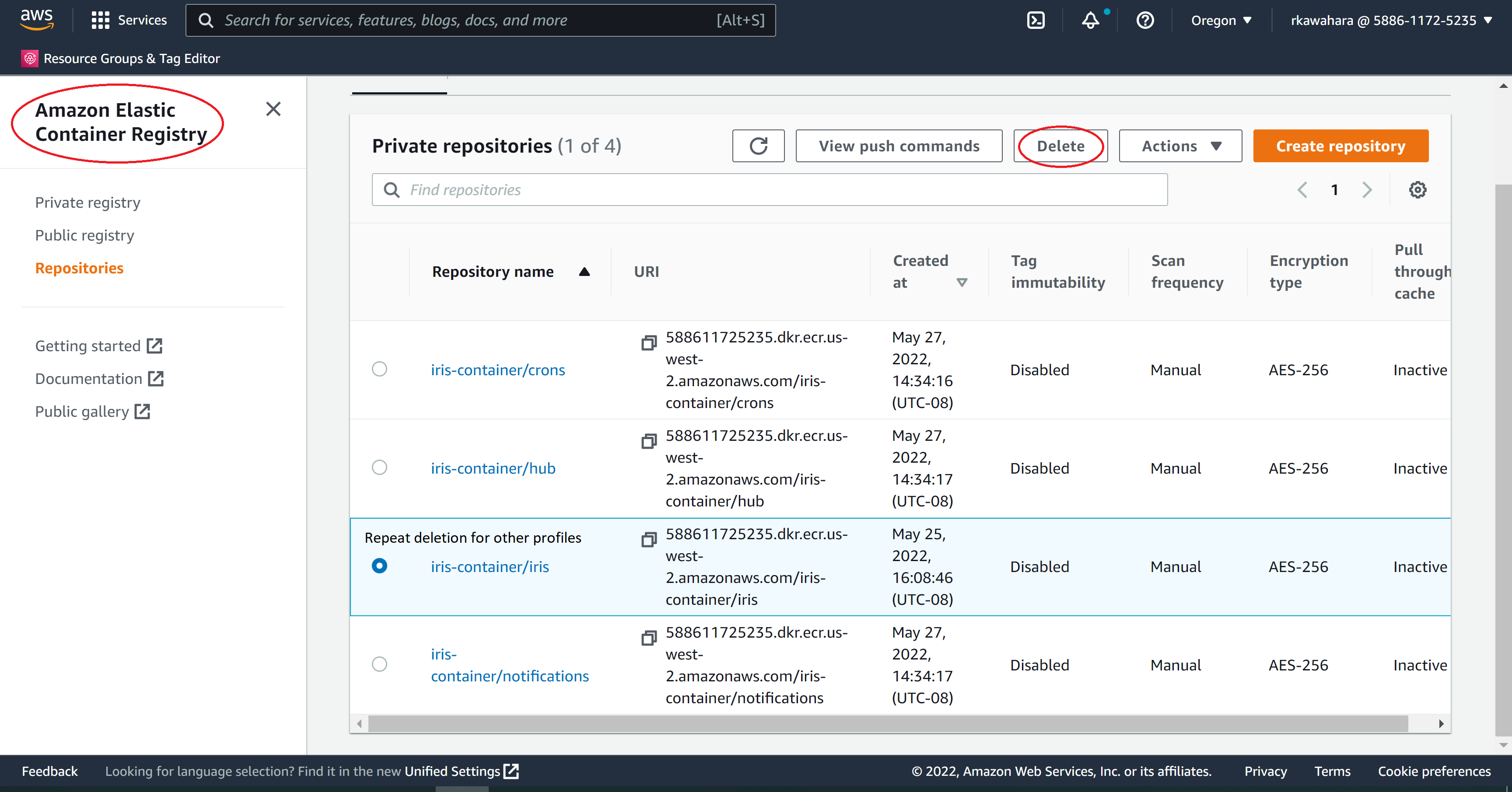

3. Go back to the ECR Registry and click the option next to the empty <deployment_name>/<profile_namespace> repository

4. Click the Delete button

   1. Confirm the deletion by typing delete in the provided field

   2. Click the Delete button

5. Repeat for each profiles

3. Delete the <deployment_name>-container CloudFormation stack¶

1. Navigate to the AWS CloudFormation console

1. Click the <deployment_name>-container stack option

2. Click the Delete button

   1. Click the Delete Stack button

3. Click the <deployment_name>-container stack name

   1. Click the Events tab

   2. Monitor the stack deletion progress

      1. Click the refresh button periodically since the console doesn’t update events automatically

NB: Stack deletion process will be similar to above instructions for other stacks.

Deleting the rest of the CloudFormation Stacks¶

Unlike the container stack, the deletion order matters for the rest. On the bright side, the deletion process should be similar to the container stacks.

Specifically, you will need to delete your stacks in the following order:

1. <deployment_name>-jupyterhub stack

2. <deployment_name>-cluster stack

3. *<deployment_name>-cluster-pipeline stack

NB:*These stacks have additional steps.

In above order, follow these steps (except for stack 3):

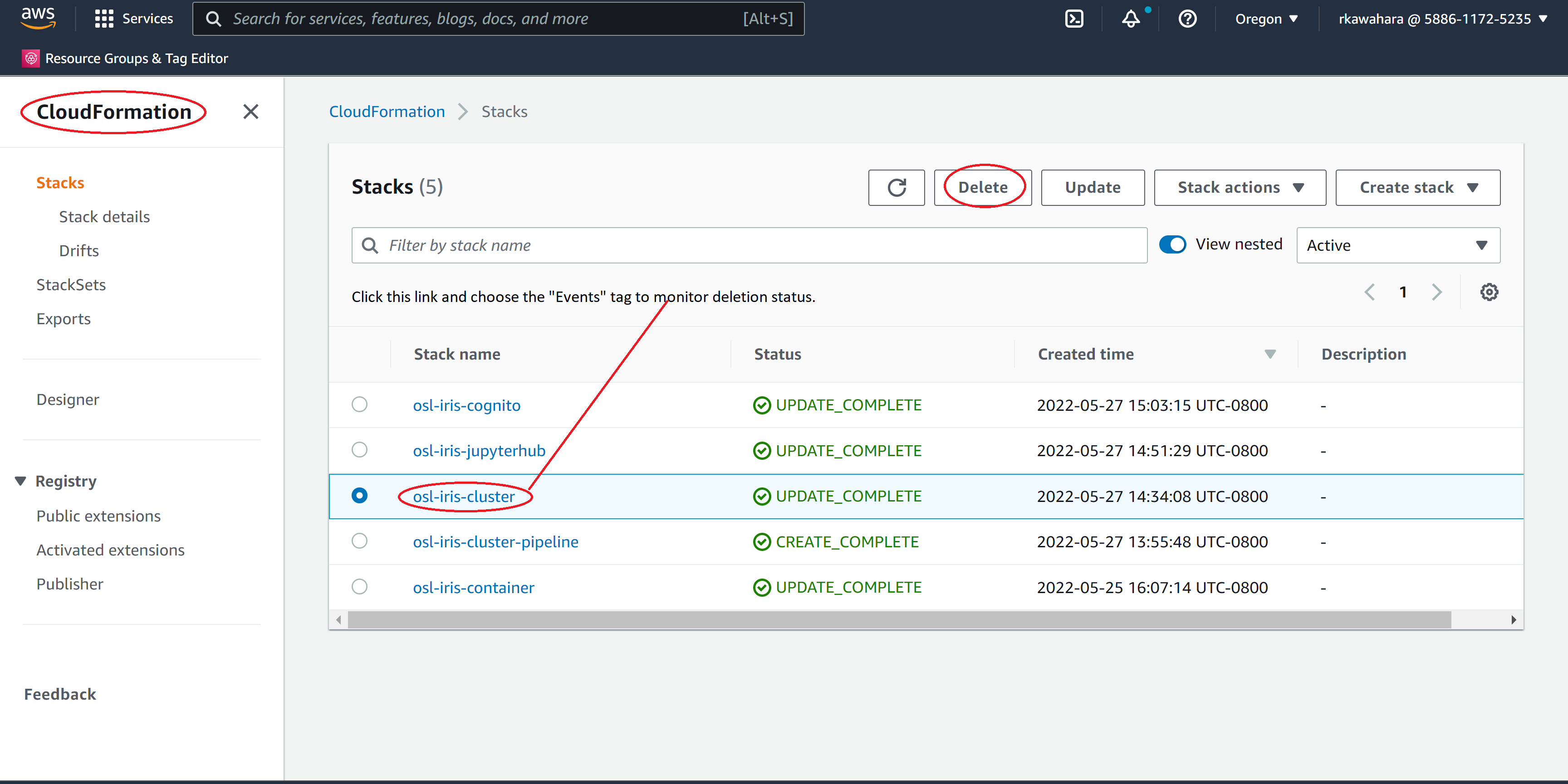

1. Delete the <deployment_name>-<stack_name> CloudFormation stack

   1. Navigate to the AWS CloudFormation console

      1. Click the box next to the <deployment_name>-<stack_name> stack

      2. Click the Delete button 1. Click the Delete stack button

      3. Click the <deployment_name>-<stack_name> stack name

         1. Click the Events tab

         2. Monitor the stack deletion progress

            1. Click the refresh button periodically since the console doesn’t update events automatically

If you are deleting stack 3 (<deployment_name>-cluster-pipeline), you will need to follow these steps first before deleting the stack:

1. Delete hub and notifications ECR repos

   1. Navigate to the AWS Elastic Container Registry

   2. Delete <deployment_name>/hub and <deployment_name>/notifications repository.

   NB: Refer to the Delete ECR Repos section for how to delete ECR repos.

Delete EBS Snapshots and Volumes¶

To mitigate the cost associated with storage space, it is crucial to deallocate unused resources. The below steps will guide you on how to do so.

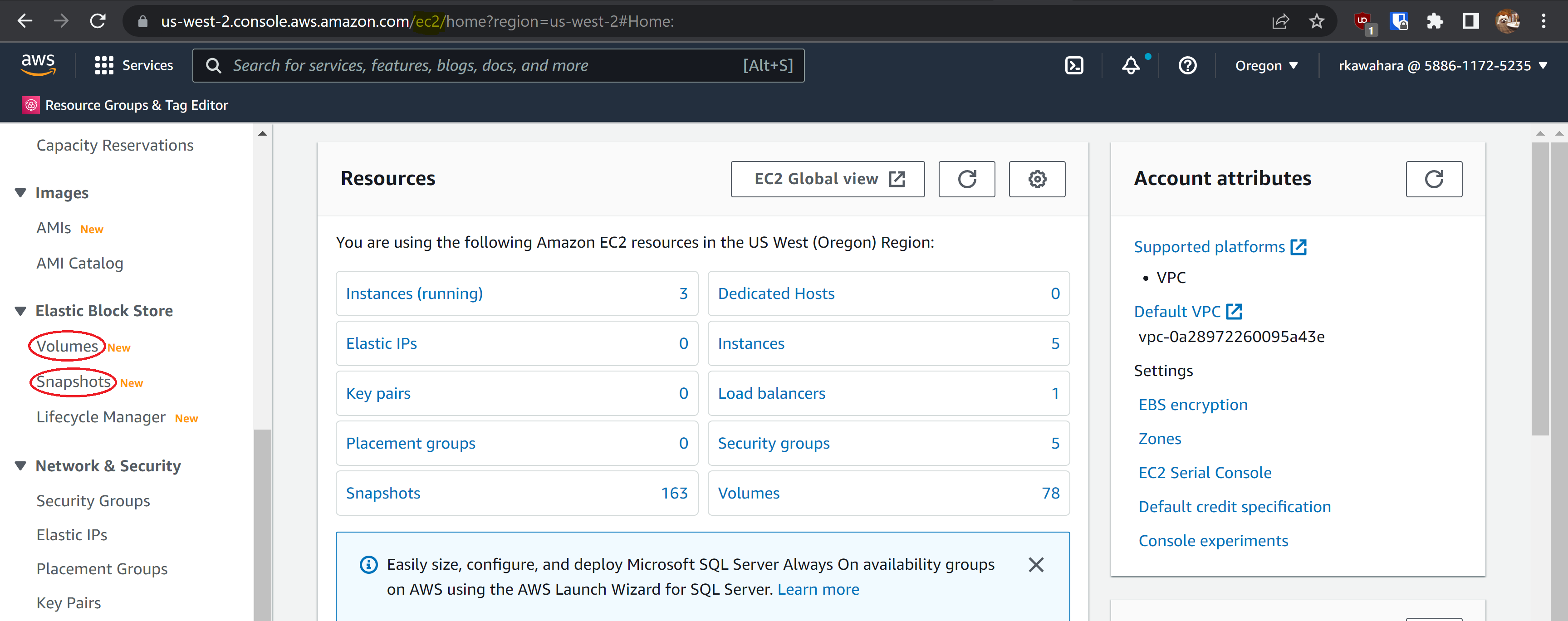

First, navigate to the AWS EC2 console - this step should be identical for both EBS snapshots and EBS volumes.

Delete EBS snapshots¶

1. Click the Snapshots link in the sidebar menu

   1. Filter by <cost allocation tag>: <deployment_name>

      1. Double check that you filtered for the correct deployment!

   2. Select all snapshots

   3. Select Delete from the Actions menu

   4. Confirm by clicking the Yes, delete button

Delete EBS volumes¶

1. Navigate to the AWS EC2 console

2. Click the Volumes link in the sidebar menu

   1. Filter by osl-stackname: <deployment_name>

      1. Double check that you filtered for the correct deployment!

   2. Select all volumes

   3. Select Delete volumes from the Actions menu

   4. Confirm by clicking the Yes, delete button

(Optional) Confirm that all resources have been deleted¶

Once you’ve taken down the deployment, you may want to verify the resource usage.

1. Wait a day for deleted resources to update in the tag editor

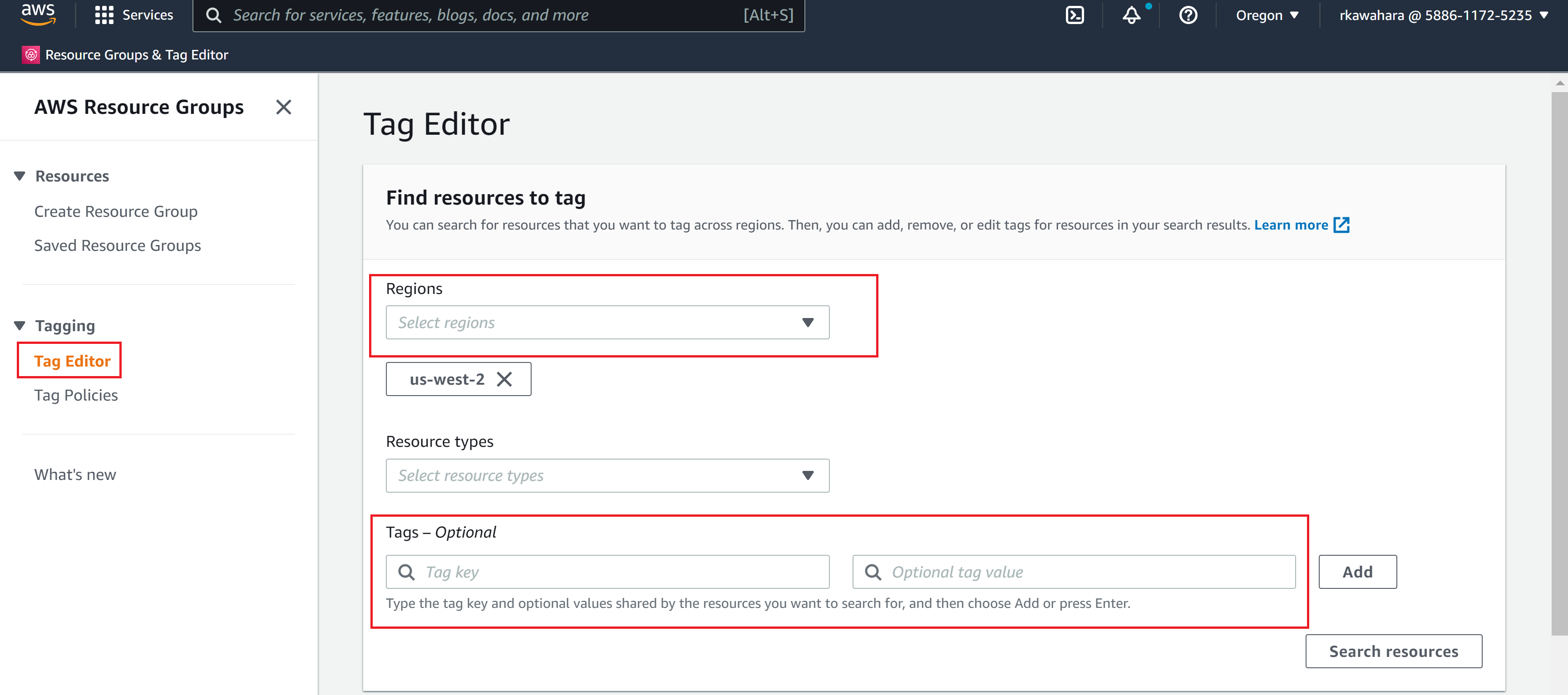

2. Navigate to the AWS Resource Groups and Tag Editor console

   1. Select the Tag Editor link in the sidebar menu and fill in the following:

      1. Regions: <current-region>

      2. Tags:

         1. Key: Cost allocation tag

         2. Value: <deployment_name>

      3. Click the Search resources button

      4. Identify and delete any remaining resources

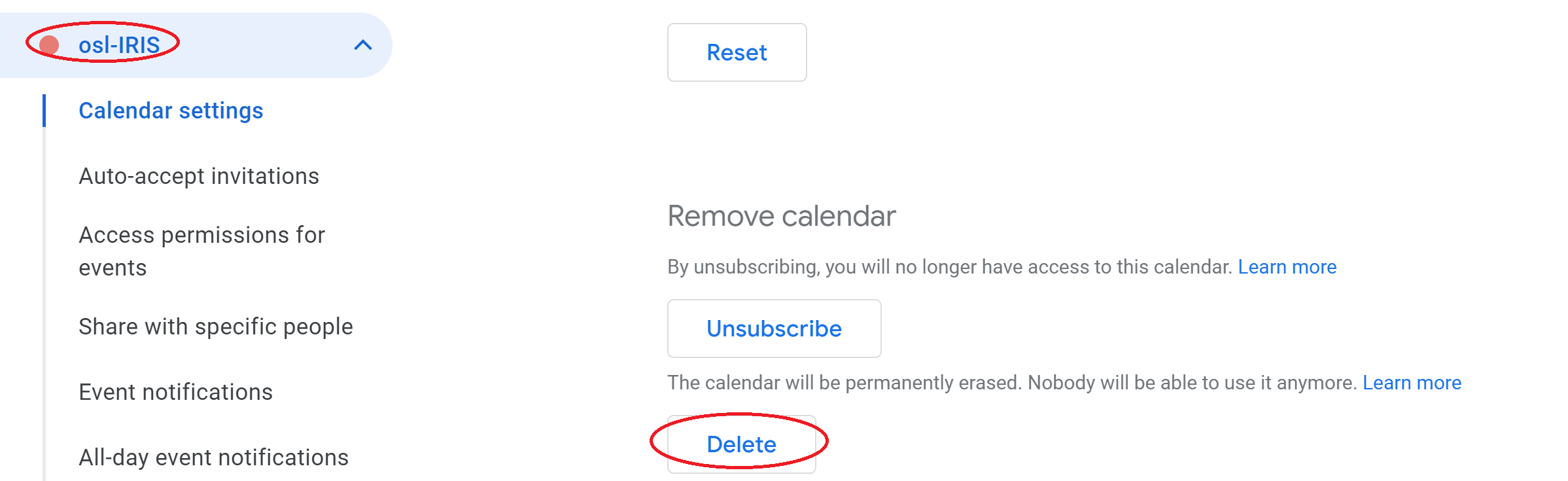

(Optional) Delete Calendar¶

Now that you are done with taking down the deployment, you will need to delete the calendar notifications.

1. Go to your Google Calendar

2. Choose a deployment you wish to remove

3. Open Settings and Sharing

4. Click Delete under Remove calendar
